The main purpose

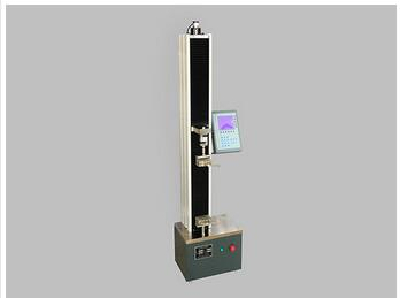

Solder tensile testing machine - digital tensile testing machine -LDS-5 The unit can perform mechanical testing and analysis of the performance of a variety of metals, non-metallic and composite materials, widely used in aerospace, petrochemical, machinery manufacturing, plastics, rubber , ceramic materials, metal materials, construction and other industries, as well as universities, research institutions, technical supervision, quality inspection stations and other departments.

May be different after accompanied according to GB / ISO / ASTM / JIS / DIN and other standards optional tensile, compression, flexural, peel, shear, tear, puncture, bursting and a variety of high and low temperature test, can detect yield strength, tensile strength (pressure, bending) strength, elongation and other parameters of the material.

The host structure

This machine adopts single-arm structure, the host portion of the column, on the beam, the beam, the composition of the table, speed control system installed in the lower part of the table, by the governor and high precision, wide range, stable performance servo motor through synchronous tooth with deceleration system driven ball screw rotates, the ball screw drive beam to drive accompanied by stretching (or compression, bending accompanied) to move up and down, to achieve loading and unloading samples. The structure has a high stiffness, high efficiency, stable transmission and so on.

Comprehensive Testing Platform

Microcomputer hardware platform, accurate real-time data acquisition and processing, monitoring and control interface mild, clear and intuitive structured, simple operation.

Test force measurement:

Load measurement: Use high-precision sensor spoke load, coupled with high-performance measuring amplifier system, ensuring high resolution test force. A plurality of sensors can be configured according to user needs, to achieve a wide range of test force measurement.

Displacement measurement: the 2000P / R high-precision optical encoder and precision screw coaxial rotation, to achieve a measure of bit power control system via digital circuitry

All-digital servo controller, servo motor control performance timing belt, driven by two pairs of high-precision seamless precision screw drive, with steady load, low-speed performance, seamless, high transmission efficiency, low noise, smooth transmission characteristics.

Deformation measurement system

According to the test standard requirements matching large deformation measurement system

protective device

Depending on the test, you can adjust the position of the limit switch protection, the most effective prevention jig crash.

Overload, overcurrent, leakage and other protection.
